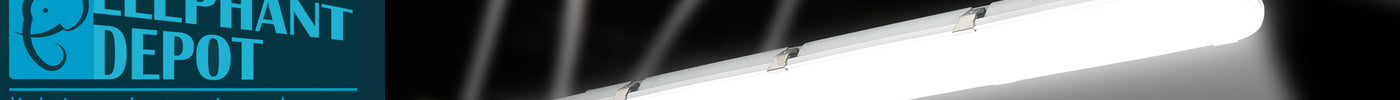

Vapor Tight Fixtures are designed to save energy and meet low-light egress requirements. It's optimal for underground parking garage compliance. Also, it's perfect for use as utility lighting, parking garage, and stairwell lighting where meets applicable building and safety codes.

LED Vapor Proof Light Benefits:

Benefits	Reason
Energy Efficiency	LED lighting technology is the most energy-efficient LED lights can save more than 85% of energy RoHS
Long Lifespan	LED lamps can last up to 50,000 hours
Waterproof & Dustproof Outdoor Lighting & Commercial Lighting	IP67
Add Security	UL Classification DLC

Type of LED Vapor Proof Light:

• LED Ceiling Light

-1) The most popular style:  4' vapor proof led light & 8' vapor tight led light

1 feet = 12 inch

-2) Heavy-duty metal frame:

High heat dissipation performance: The metal has excellent thermal conductivity and can conduct heat rapidly.

High corrosion resistance: can withstand bad weather conditions for a long time.

Environmentally friendly: Metal is a renewable material and is easy to recycle and reuse.

Increase the emissivity of light.

-3)  A wide range of use:



• LED Jelly Jar



Features:

- Heavy-duty die-cast aluminum housing with anti-corrosion texture architectural baked polyester powder coating.

- Durable clear/frosted opal glass with cast aluminum guard.

- Aluminum extruded heat sink designed to facilitate heat dissipation to reduce LED junction temperature for maintaining lighting output and life span of the LED.

- 120- 277V Input, 50/60Hz

- PF>0.9, CRI > 70

- 140-degree beam angle even lighting distribution

- Available in 4000/5000K

- Ambient temperature: -25℃ to +54℃

- Humidity: less than 90% RH, non-condensing

- Upgrade DLC5.1

What Is The Meaning Of Vapor Tight?

Vapor-tight light fixtures are referred to as wet location fixtures, which provide general illumination for indoor and outdoor location where exposure to water, humidity, and dust is likely to occur.

 What Is The IP Rating Of Vapor?

For Example:

IP65	IP67	IP68
Low IP ratings	High IP ratings	High IP ratings
IP65 LED lights can be damaged when submerged in water Indoor	IP67 LED lights should not be immersed in water for a long time Indoor & Outdoor	Best waterproof effect Outdoor

Waterproof level refers to the level of waterproof, that is, to prevent water damage and damage. The waterproof rating is divided into nine levels, which are generally represented by IPX.

1. IPX0: No waterproof protection.
2. IPX1: The device can provide waterproof protection equivalent to 3-5 mm/min rainfall for 10 minutes under normal operation.
3. IPX2: The level is basically the same as IPX1, but it can pass the waterproof test with 15 degrees of up-warping in all directions.
4. IPX3: 60 degrees Angle splash water protection, provides 2-5 minutes of 10 L/s flow rate and 80-100n/m pressure water protection.
5. IPX4: The level is basically the same as IPX3, but can provide full range and Angle splash waterproof protection.
6. IPX5: Full range and Angle waterproof protection, providing 2-3 min flow rate of 12.5 l/s and 30n/m pressure waterproof protection.
7. IPX6: Waterproof protection for large waves, lasting 2-3 minutes against a depth of 3 meters underwater, a flow rate of 100 liters/minute, and a pressure of 100 N /m.
8. IPX7:1 meter underwater can be soaked for 30 minutes.
9. IPX8: completely waterproof, can be used continuously in water for a long time.

How to Install Vapor-Proof LED Lighting?

Step 01: Release latches by pulling the top of the latch away from the housing and removing the lens from the housing.

Step 02: Without touching the LED boards, detach the LED tray from the fixture.

Step 03: Take the installation kit outside from the fixture housing.

Step 04: Locate and drill holes for mounting brackets. Use hardware found in the installation kit. Mount brackets to the surface.

Step 05: Press the mounting clips to housing recesses until both sides of the clip are secured.

Step 06: Follow the Step 01 for reference make sure the power supply is disconnected before installing.

Step 07: Reattach the LED tray to the fixture by reversing step 2.

Step 08: Secure the lens to housing with lens latches.

Note:
-1) Connect the flexible cord (S」TW 18AWG, not included) to the driver input wires.
-2) Be sure to connect the wet location-rated strain relief(included)to the side hole of the housing.
-3) To ensure that the gap is sealed by glue.

How Do I Change The Temperature Or Wattage Of LED Light Color?

These lighting fixtures often come with a switch that allows you to select different color temperature settings and Wattage.

The end users may adjust the color temperature and lumen output respectively by the two DlP switch buttons integrated into the driver. Each DIP switch is accommodated with 3 options (left, middle, and right ), corresponding to 3 color temperatures and 3 powers respectively, which can perform the desired color temperature and lumen output combination.
Factory Settings:34W3500K1. DlP switches are located on the LED Module holder plate. (see Fig.D)2. Select a wattage and color temperature by sliding the switch left or right respectively to the desired value. (see Fig.D)



The application of color temperature in the role of lamps is mainly reflected in the selection of the right color temperature according to different scenes and needs to create a suitable atmosphere and enhance visual comfort.

• Natural light (3500-4000K),  similar to natural light during the day, creates a peaceful atmosphere.
• Cool light (4000K to 5000K), similar to cool light during the day, helps increase alertness and concentration.
• Daily light (5000K to 6500K), is a bright and clear light suitable for use in task areas that require high brightness.

Benefits Of Adjustable Wattage:

• Energy savings:

The wattage is adjusted so that the luminaires work with minimum power while maintaining brightness.

• Longer life:

Generally, lights will last longer if they're regularly used at a lower setting.

 When choosing a vapor proof light fixture, you can consider things like:

Lighting Material	Metal is best, especially aluminum
Size	4' vapor tight led fixture 8' vapor tight led fixture
Adjustable Wattage	3 style 5 style
IP Rating	IP67 > IP65 > IP44 > IP20
Color Temperature	3CCT 5CCT
Certification	DLC UL Classification UL Listed
Dimmable	0-10V  Dimming
