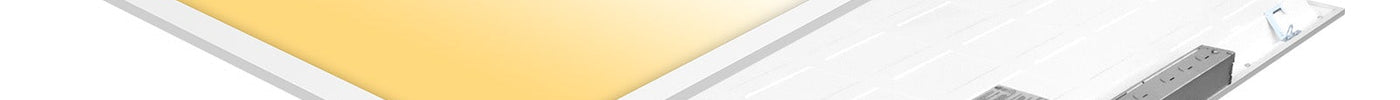

What Is A Panel Light?

LED Panel Lights are slim in design, which provide seamless wall illumination without visible bulbs. Common styles are as follows:

• Edge-Lit LED Flat Panels

Features:

- Durable anodized aluminum frame with highly reflective, matte powder-coated paint.

- High quality PMMA light guide plate creates uniform light, edge to edge, for every lit space.

- Luminaires are available in 1x1,1x2,2X2, 1X4 and 2X4.ideal replacement for the existing T8/T12 lay-in troffer fixture, with a build-in power source.

- Surface, pendant, and recessed mounting options available.

- A wide color temperatures of 3000K/3500K/4000K/4500K/5000K.

- 120- 277V Input, 50/60Hz, PF>0.9, CRI> 80

- Ambient temperature: -20℃ to 40℃

- Smooth 0- 10V and 120V Triac dimming feature and compatible with a wide variety of dimmers

- UL and DLC compliance.

• CCT/Wattage Selectable Edge-Lit LED Flat Panels

Features:

- Durable anodized aluminum frame with highly reflective, matte powder-coated paint.

- High quality PMMA light guide plate creates uniform light, edge to edge, for every lit space.

- Luminaires are available in 1x1,1x2,2X2, 1X4 and 2X4.ideal replacement for the existing T8/T12 lay-in troffer fixture, with a build-in power source.

- Surface, pendant, and recessed mounting options available

- With 3-way lumen tunable.

- 120- 277V Input, 50/60Hz, PF>0.9, CRI> 80.

- Ambient temperature: -20℃ to 40℃

- Smooth 0- 10V and 120V Triac dimming feature and compatible with a wide variety of dimmers.

- UL and DLC standard & Premium compliance.

• Internal Driver Edge-Lit LED Flat Panels

Features:

- Durable anodized aluminum frame with highly reflective, matte powder-coated paint.

- High quality PMMA light guide plate creates uniform light, edge to edge, for every lit space.

- Luminaires are available in 1x1,1x2,2X2, 1X4 and 2X4.ideal replacement for the existing T8/T12 lay-in troffer fixture, with a build-in power source.

- Surface, pendant, and recessed mounting options available

- White tunable in 3/5 discrete color temperatures 3000K/3500K/4000K/4500K/5000K can be changed before. during or after installtion.

- 120- 277V Input, 50/60Hz, PF>0.9, CRI> 80.

- Ambient temperature: -20℃ to 40℃

- Smooth 0- 10V and 120V Triac dimming feature and compatible with a wide variety of dimmers.

- UL and DLC standard compliance.

• Back - Lit LED Flat Panels

Features:

 - Durable anodized aluminum frame with highly reflective, matte powder-coated paint.

- Luminaires are available in 1x1,1x2,2X2, 1X4 and 2X4.ideal replacement for the existing T8/T12 lay-in troffer fixture, with a build-in power source.

- Surface, pendant, and recessed mounting options available.

- Available in a wide range of color temperatures from 3000-5000K.

- 120- 277V Input, 50/60Hz, PF>0.9, CRI> 80.

- Ambient temperature: -20℃ to 40℃

- Smooth 0-10V and compatible with a wide variety of dimmers.

- UL and DLC compliance.

• CCT & Wattage Selectable Ultra Thin Profile LED Panel

Features:

- Aperture/Grid: 4-inch nominal aperture w/6 inch grid spacing w/acrylic light guide, aluminum frame, and matte paint after fab finish.

- Surface/Suspension and drywall frame kits optimized for use in many spaces.

- Large external switches to adjust lumens and/or color before or after installation.

- IC rated with high-performance efficacy up to 115lm/w.

- 120- 277V Input, 50/60Hz, PF>0.9, CRI> 80.

- 0-10V dimming to 10% standard.

- UL and DLC compliance.

• LED Frameless Panel

Features:

- Durable anodized aluminum frame with highly reflective, matte powder-coated paint.

- High-quality PMMA light guide plate creates uniform light, edge to edge, for every lit space.

- Luminaires are available in 1x1,1x2,2X2, 1X4 and 2X4.ideal replacement for the existing T8/T12 lay-in troffer fixture, with a build-in power source.

- Available in a wide range of color temperatures from 3000K-5000K.

- Ambient temperature: -20℃ to 40℃.

- 120- 277V Input, 50/60Hz, PF>0.9, CRI> 80.

- Smooth 0-10V and compatible with a wide variety of dimmers.

- UL and DLC compliance.

Where Do You Use Panel Lights?

Panel lights are commonly used for general illumination in commercial or public spaces. For example, libraries, shopping malls, schools, hospitals, and so on.

How Does The Light Panel Work?

LED panel lights are made of two layers that work together to distribute light evenly:

•  LED array

It will direct the light onto a diffusing plane.

•  Diffusing plane

It reflects the light within its own structure to allow for the even distribution of light throughout the whole thing.

 What Are The Parts Of A Panel Light?

Component	Importance
Aluminum frame of LED panel light	Has a good surface texture and a beautiful appearance Helps to dissipate heat when lighting lamps
The light source of LED panel light	Advanced LED lighting technology can not only save energy but also protect the environment
Light guide plate of LED panel light	It is the key to the quality control of the LED panel light.
Diffusion board of LED panel light	The light can be evenly exported
Reflective paper of LED panel light	Improve light efficiency
Rear cover of LED panel light	It is to seal the LED panel light.
Drive power supply of LED panel light	It is a device that can provide power to electronic equipment.



How To Install LED Light Panels?



LED Panel Light Common Size: 1 x 4 ft, 2 x 2 ft, 2 x 4 ft.

• INSTALLATION-RECESSED MOUNTING

Step 01:

Lift four mounting clips on the sides of the fixture. Twist the hook 90 degrees towards the outside.

Step 02:

Insert luminaire into the T-bar ceiling grid. Secure safety cable (not included)  to connection hole as needed to meet local seismic requirements. Safety cable and method of attachment to the building provided by the contractor according to local building codes.

Step 03:

Remove the cover of the electrical wiring box. Remove knockouts for AC input cables and 0-10V dimming control cables. Install listed electrical fittings in the knockout sockets for wire protection.

Step 04:

Plug in the Ac line (L, N, and GND) to the LEDdriver with 18-14 AWG wire by following the wiring instructions. Use a separate knockout socket (not included) to connect 0-10V dimming controller.

• INSTALLATION-SURFACE MOUNT

Step 01:

Assemble the mounting brackets (not included).

Step 02:

Install the brackets (not included) to the ceiling with fasteners.

Step 03:

Connect the LED panel to the power source.

Step 04:

Remove one side of the brackets (not included) and insert the LED panel into the bracket.

Step 05:

Make sure the LED panel fits in the bracket then install the removed bracket back to the fixture to complete the install.

When choosing LED panel lights, you can consider things like:

Size	1 x 4 ft  2 x 2 ft  2 x 4 ft
Appearance	Square Rectangle
Brightness	Lumens per watt Color temperature (CCT)  CRI (Color rendering index)
Energy Conservation	Wattages Selectable Wattages 0-10V Dimmable
Warranty	It is not recommended to choose less than 3 years
Certifications	FCC, UL, DLC Lights with professional certification are more reliable and safe
